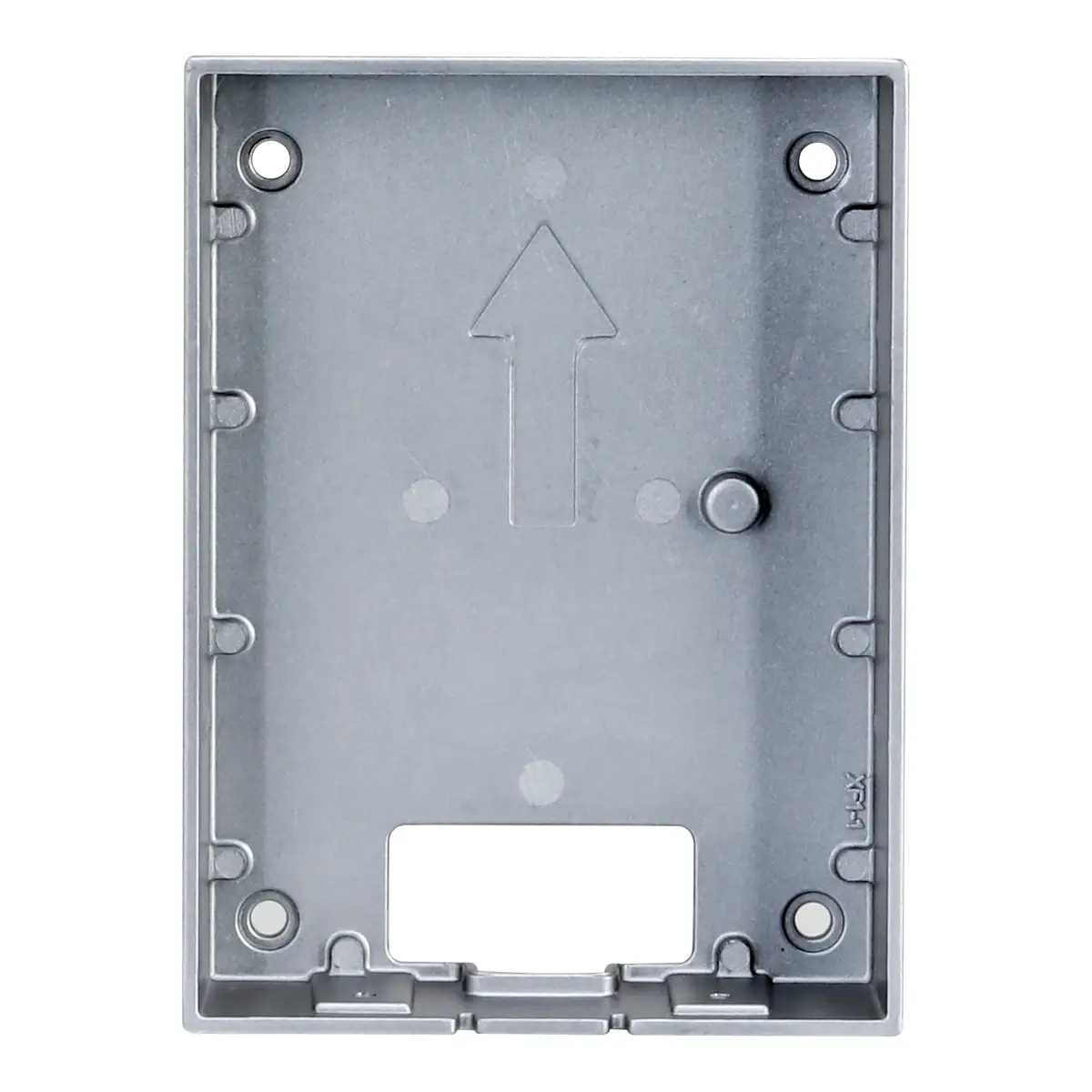

Surface-mount box for the VTO2202F
The box that places the VTO2202F on the wall. Required if the facade cannot be routed out, for example with brick or concrete that you do not want to break open.
The box is fitted against the facade and the door station goes inside it. Outdoors, a rain cover is advisable: it keeps water off the front.
What you can count on
- On the wall: no chiselling or routing required
- For the VTO2202F: made to fit this door station, not interchangeable
- Space for cabling: the cable exits behind the unit and stays out of sight
- Sold separately: the door station is not included
Sealing during installation
Seal the edges with silicone sealant during installation. If you do not, rainwater runs behind the housing and still reaches the cabling.
The details at a glance
| Function | Surface-mount box |
| For | VTO2202F |
| Mounting | Surface-mount |
| Colour | Silver |
| Dimensions | 129,0 x 95,0 x 28,5 mm |
| Model code | VTM115 |
The full specification is in the Dahua datasheet.
Frequently asked questions
Is the door station included?
No, this is only the mounting box. The unit is ordered separately.
Do I also need a rain cover?
Outdoors, on an unsheltered facade, this is advisable. Under a canopy or in a porch it can be omitted.
Does this box fit another door station?
No, it is made for the VTO2202F. If you are unsure, tell us your model type and we will find the right one.
