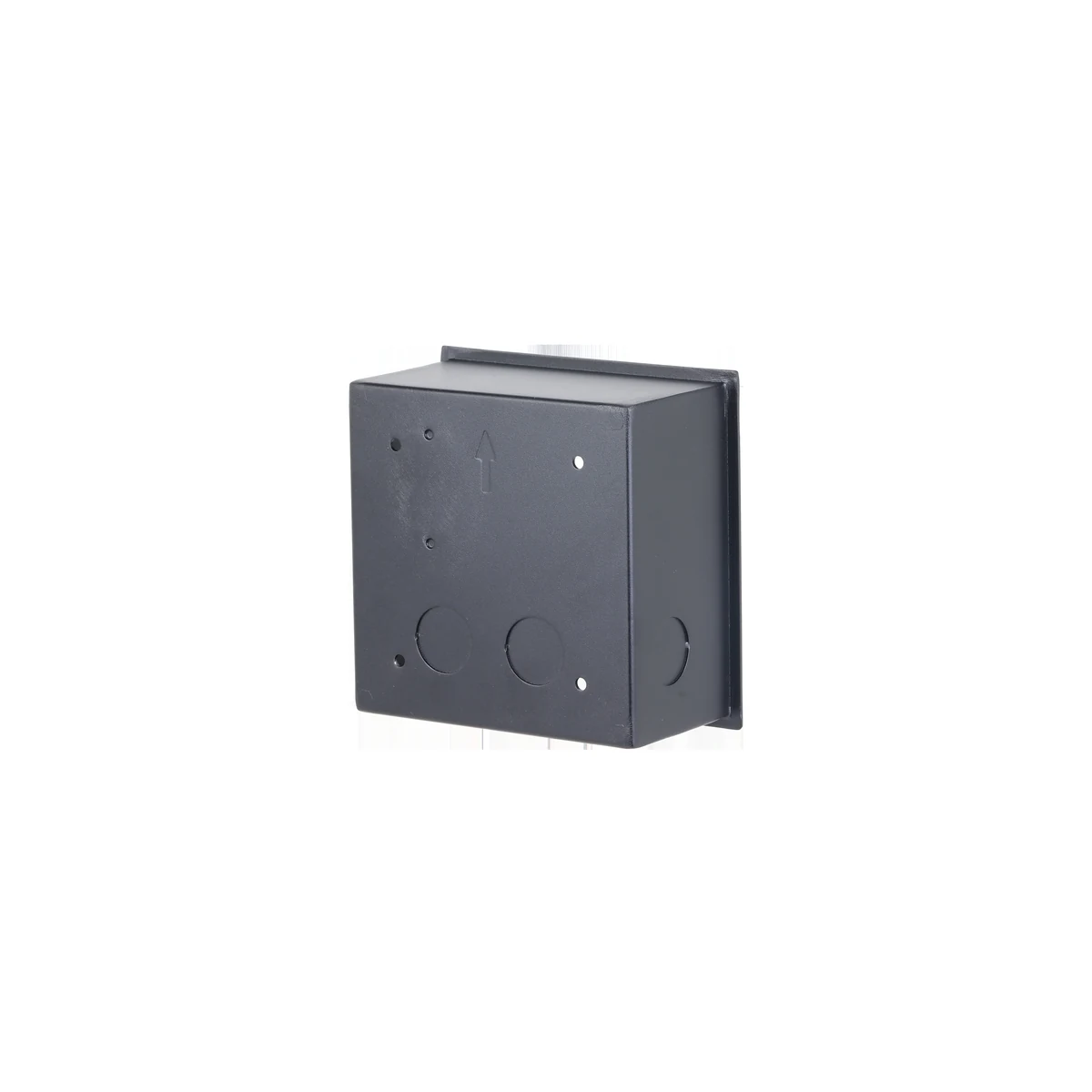

Mounting box for one module
The box that goes into the wall, so that the door station sits flush in the facade instead of on top of it.
The box is placed in the recess, after which the modules go in and the front panel goes over them. The front panel is a separate item: the VTM77 in silver or the VTM78 in black fits here.
What you can count on
- Flush with the façade: the unit does not protrude from the wall
- For one module: the camera module counts as a module
- For flush mounting: for surface mounting there is a housing with a rain hood
- Front sold separately: the VTM77 in silver or the VTM78 in black fits here
The front panel is not included
The housing and the front panel are two separate items. The box contains only the housing; the front panel must be ordered in addition.
These housings are designed for Dahua modular door stations. If you are not sure whether your modules fit, please send us the model type and we will check.
The details at a glance
| Function | Mounting box |
| Number of modules | 1 |
| Mounting | Flush mounting |
| Dimensions | 133,0 x 133,0 x 68,0 mm |
| Weight | 0,25 kg |
| Front | VTM77 or VTM78 |
| Model code | VTM79 |
The full specification is in the Dahua datasheet.
Frequently asked questions
Is the front panel included?
No, that is a separate item. The VTM77 in silver or the VTM78 in black fits here.
How deep does the recess need to be?
The box is 68 mm deep. Allow some extra space in the wall for the cabling that runs behind it.
Can this box also be mounted on the wall?
No. For surface mounting there are housings with a rain hood.
What if I want to expand later?
The number of modules is fixed by the size of the box. If you expect to add a module later, choose the larger version straight away: expanding otherwise means breaking into the wall again.
