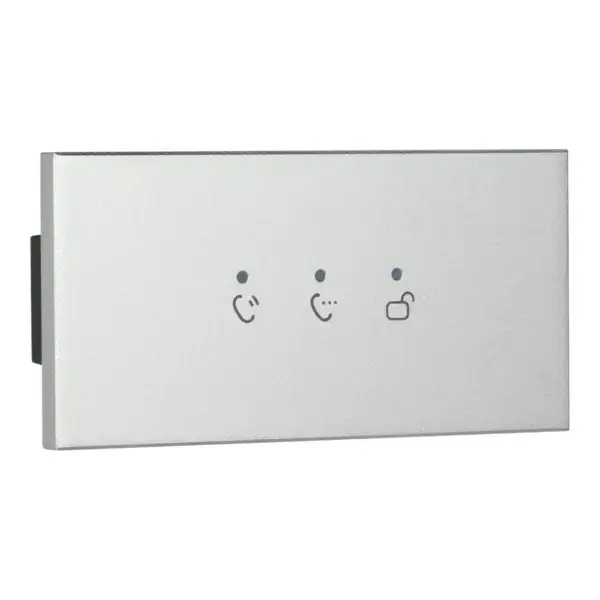

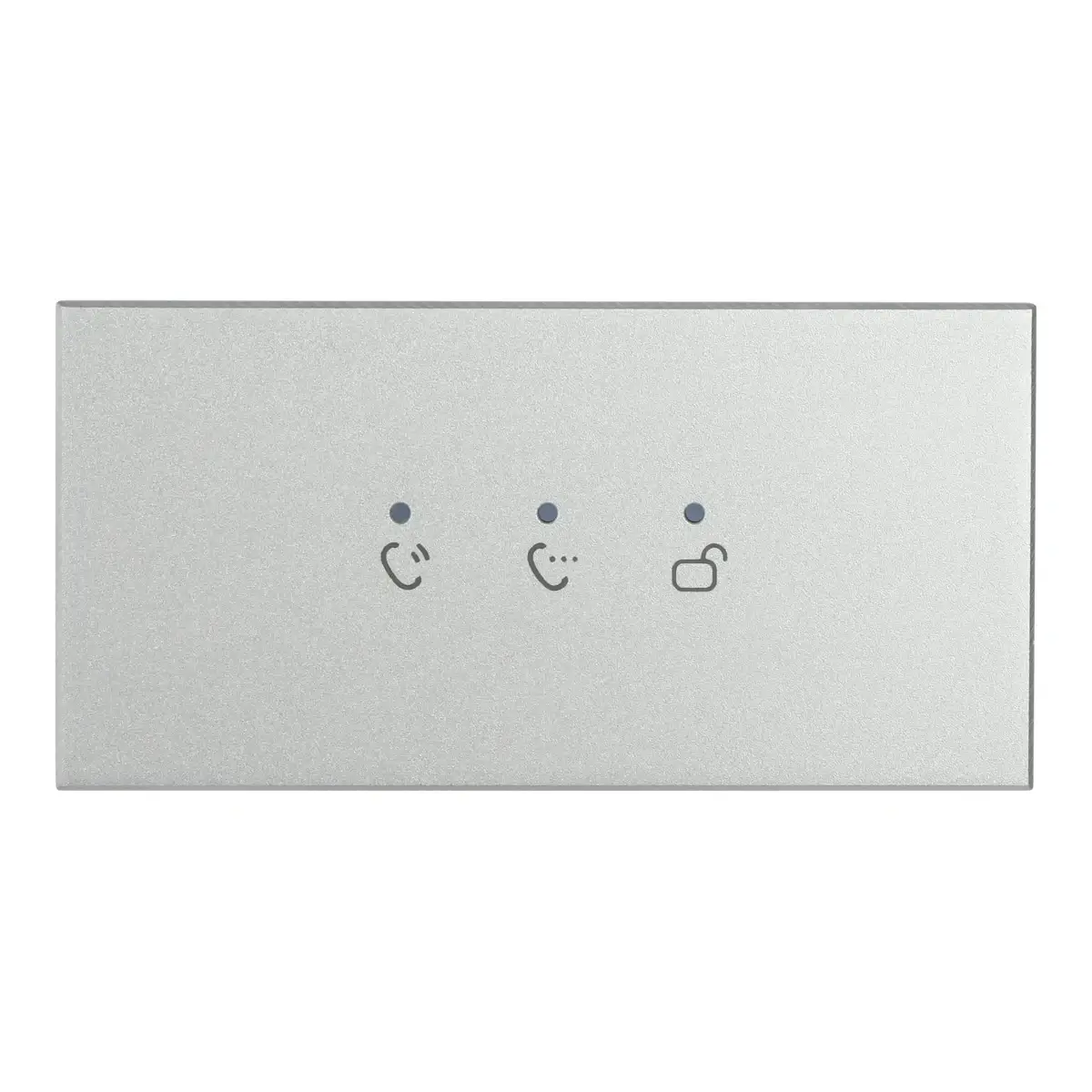

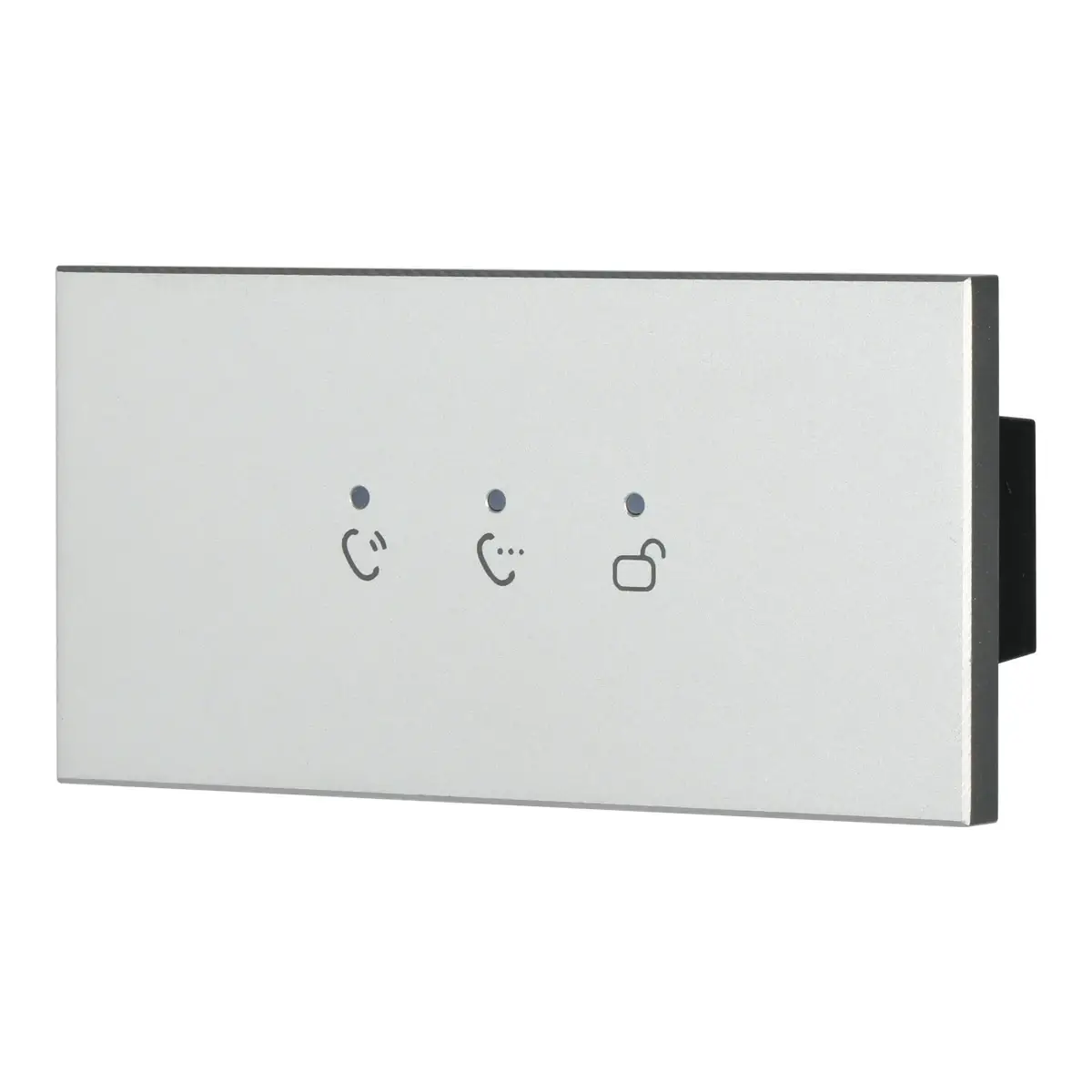

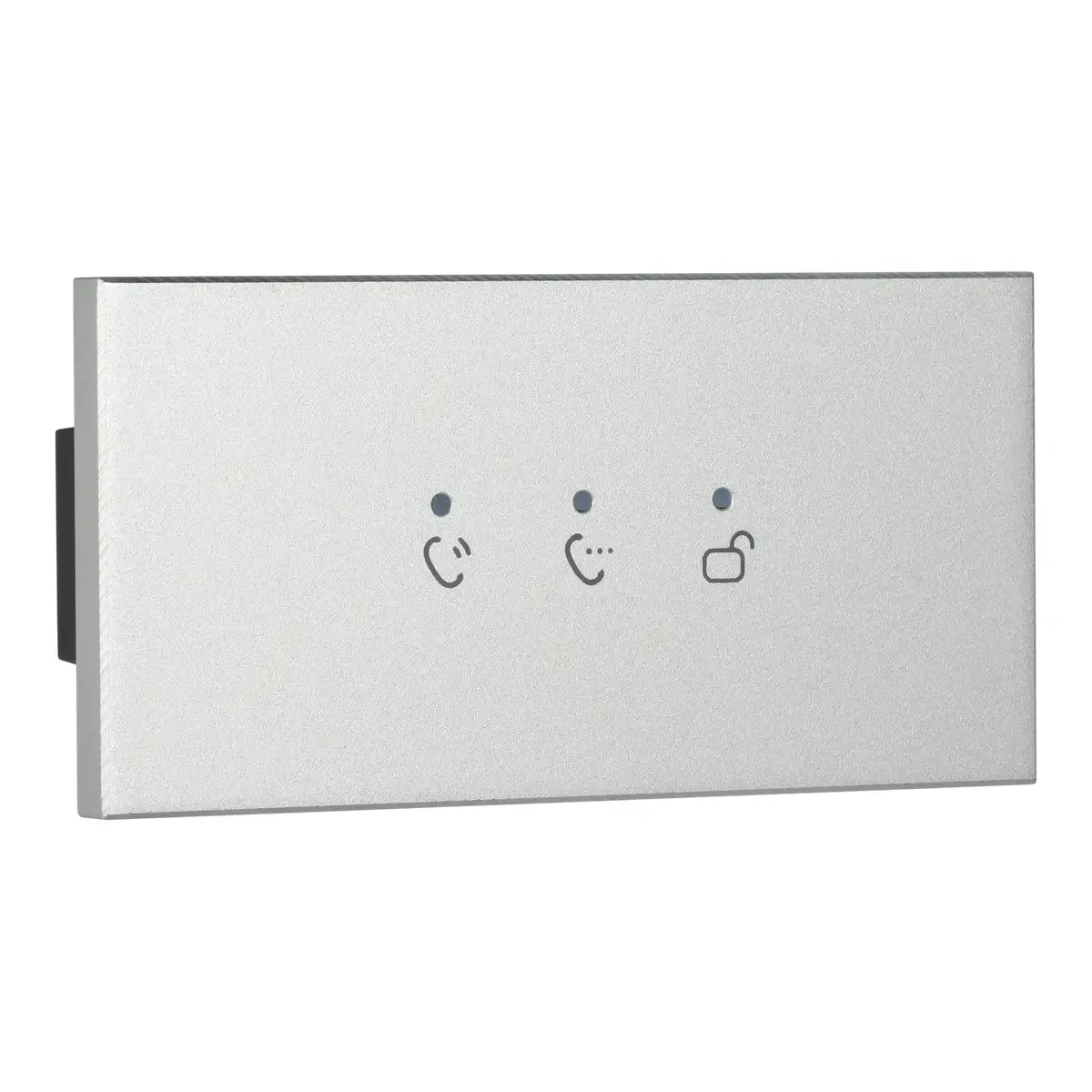

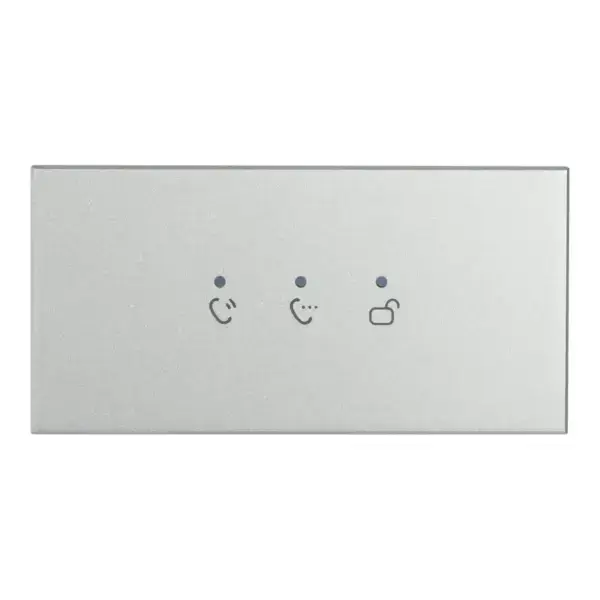

Indicator module
A module for the VTO4202 series that uses lighting to show what the door station is doing, so that a visitor can see that something is happening.
What you can count on
- Visible feedback: the visitor can see that the bell has been rung or that the door is opening
- Power supply via the main module: 5 volts, supplied by the adjacent module, so no connection of its own
- Aluminium: silver finish, IK07 and IP65
What to look out for
This module belongs to the VTO4202 series, which works on IP with PoE or 2-wire. For the VTO4103 series there is a separate version with the same function. So first check which main module you have or are choosing.
The IP65 rating only applies once the housing has been sealed with silicone sealant during installation.
The details at a glance
| Function | Indicator module |
| Series | VTO4202 (IP with PoE or 2-wire) |
| Colour | Silver |
| Dimensions | 100 x 100 mm (entire module) |
| Power supply | 5 VDC via the main module |
| Consumption | Maximum 0.5 W |
| Protection | IK07 and IP65 |
| Operating temperature | -30 to +60 degrees |
| Model code | VTO4202F-ML |
The full specification is in the Dahua datasheet.
Frequently asked questions
Why a separate module for this?
In a larger set-up with many buttons, it is helpful to have one clear place where the status can be read.
Does this module need its own power supply?

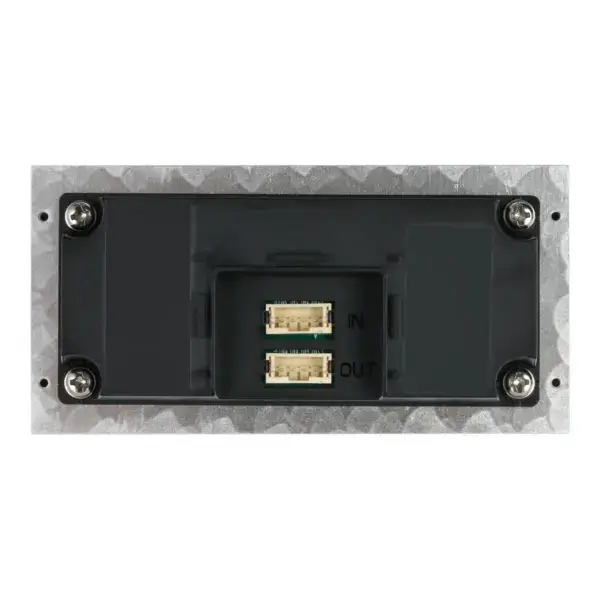

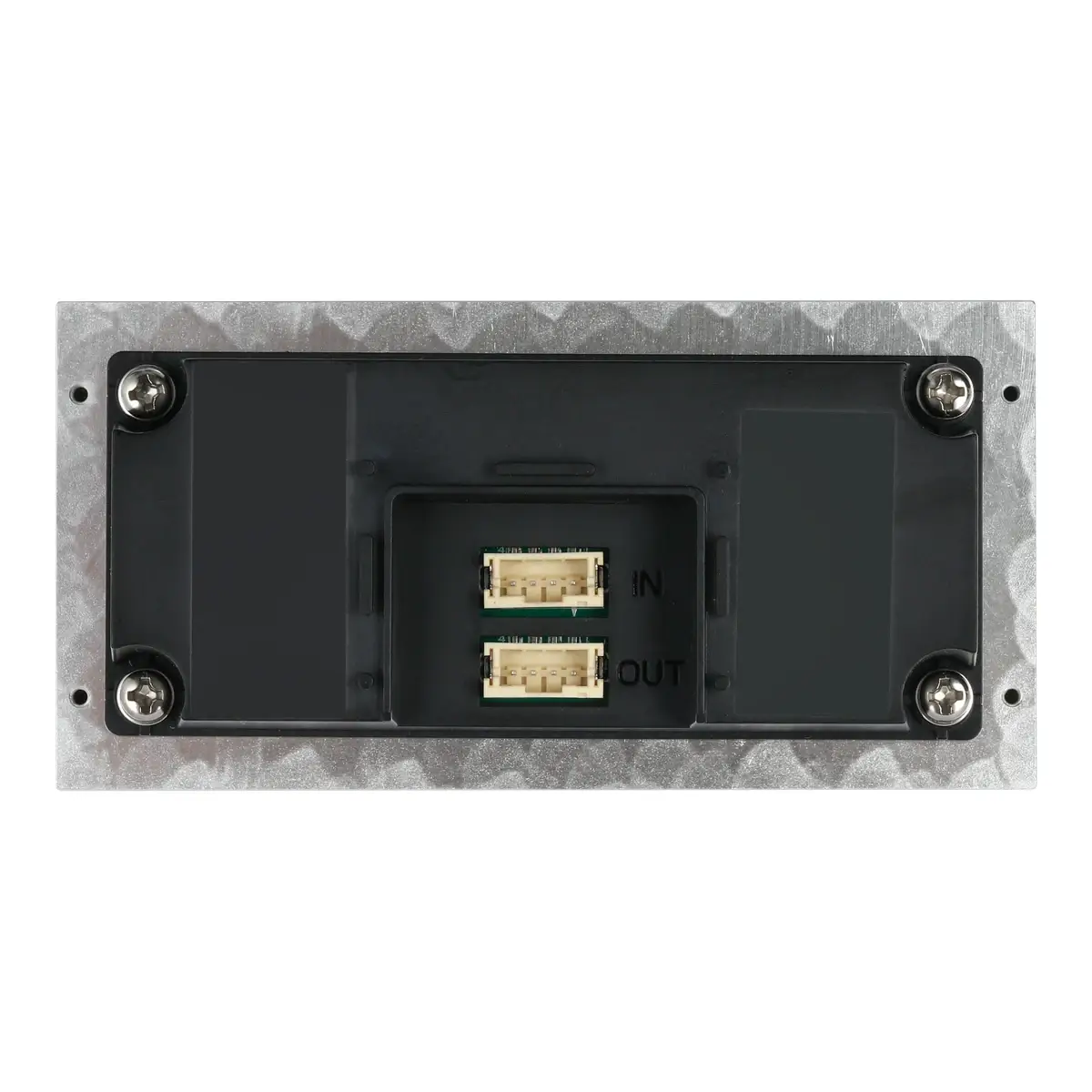

No. The modules receive 5 volts from the main module via the small cables between them. You only connect the main module.
Is an enclosure included?
No. You choose the housing based on the total number of modules in your setup, and you order it separately. Let us know how many modules you have and we will find the matching one.
