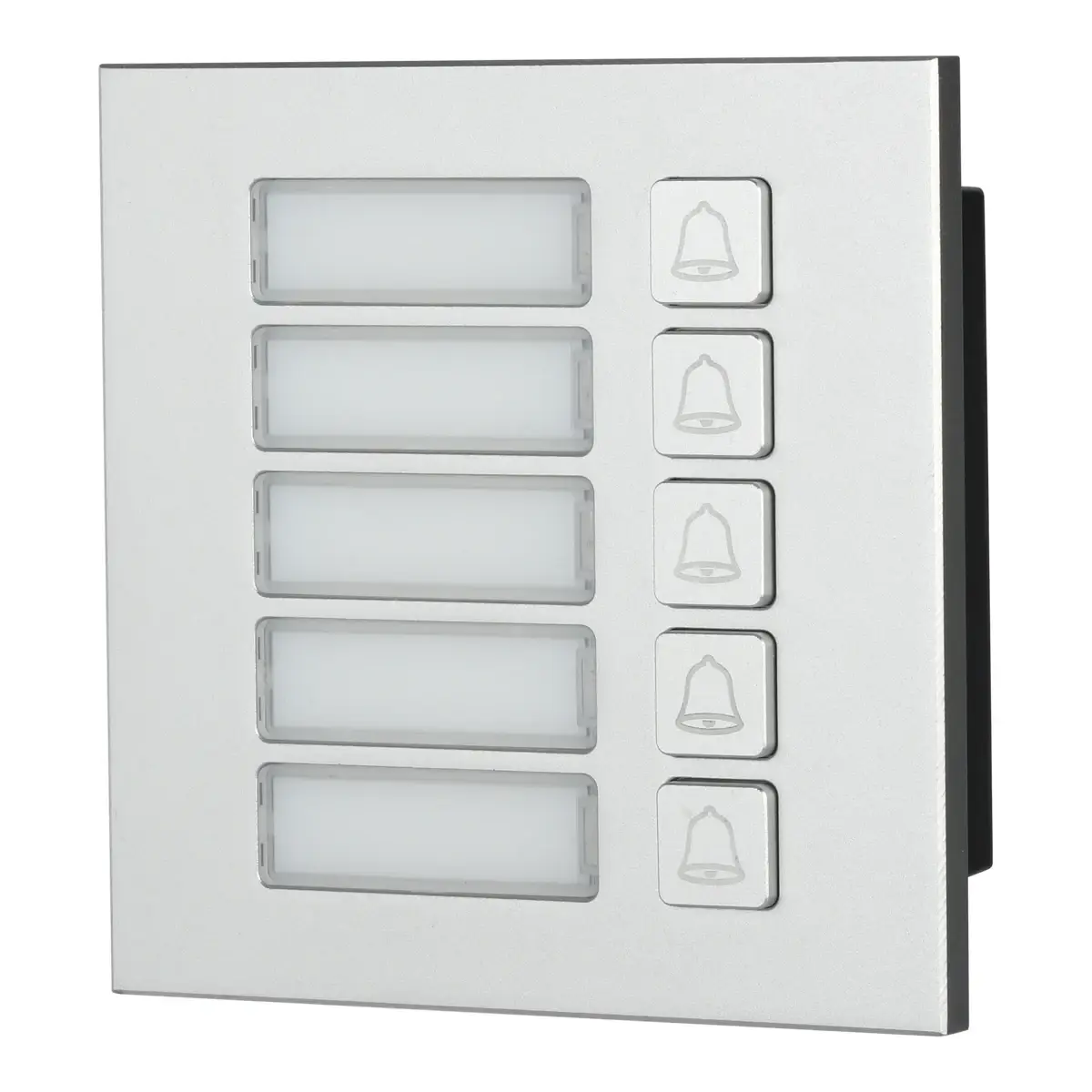

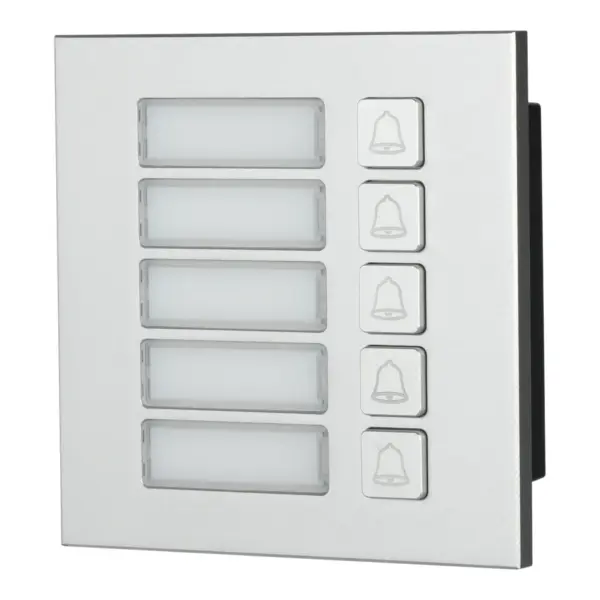

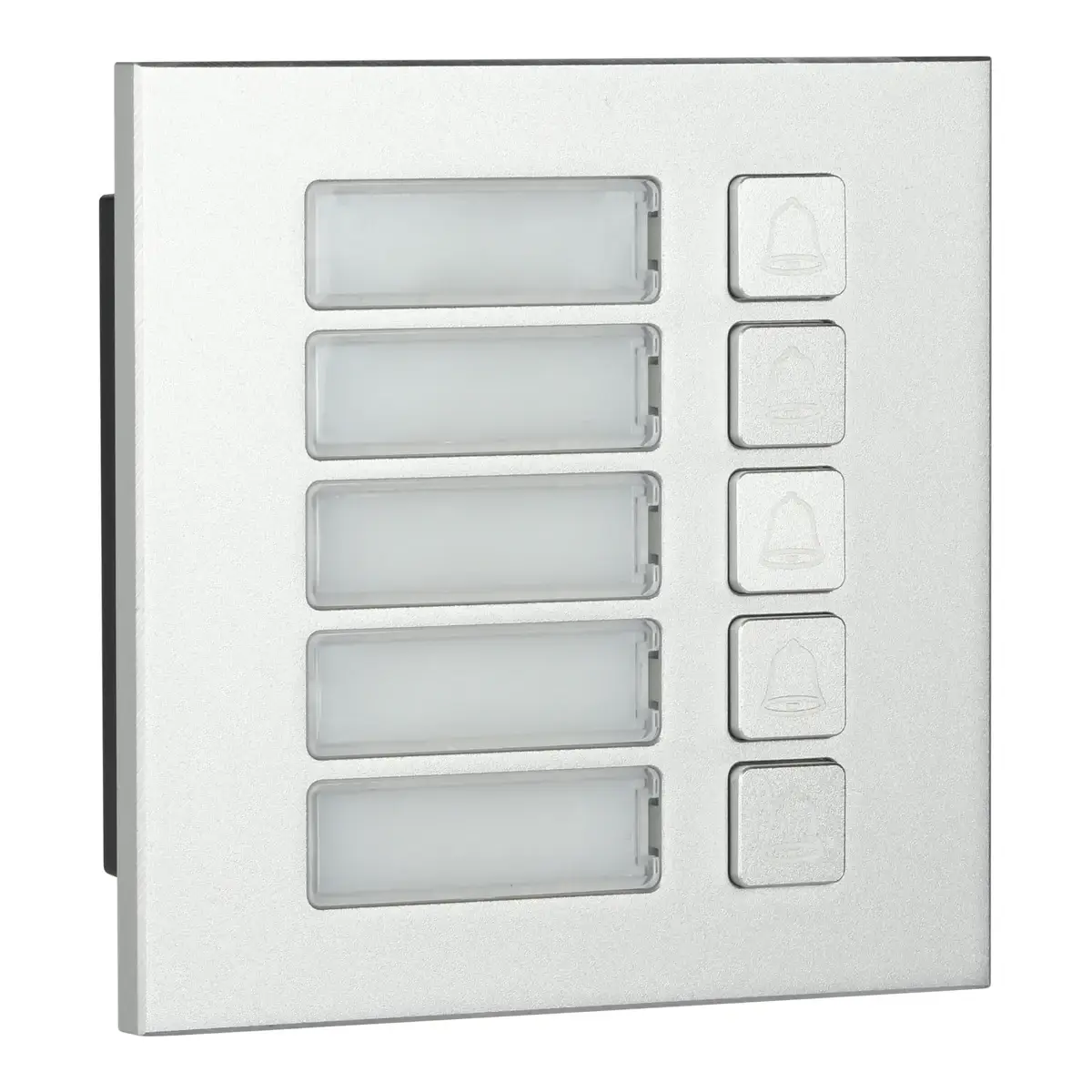

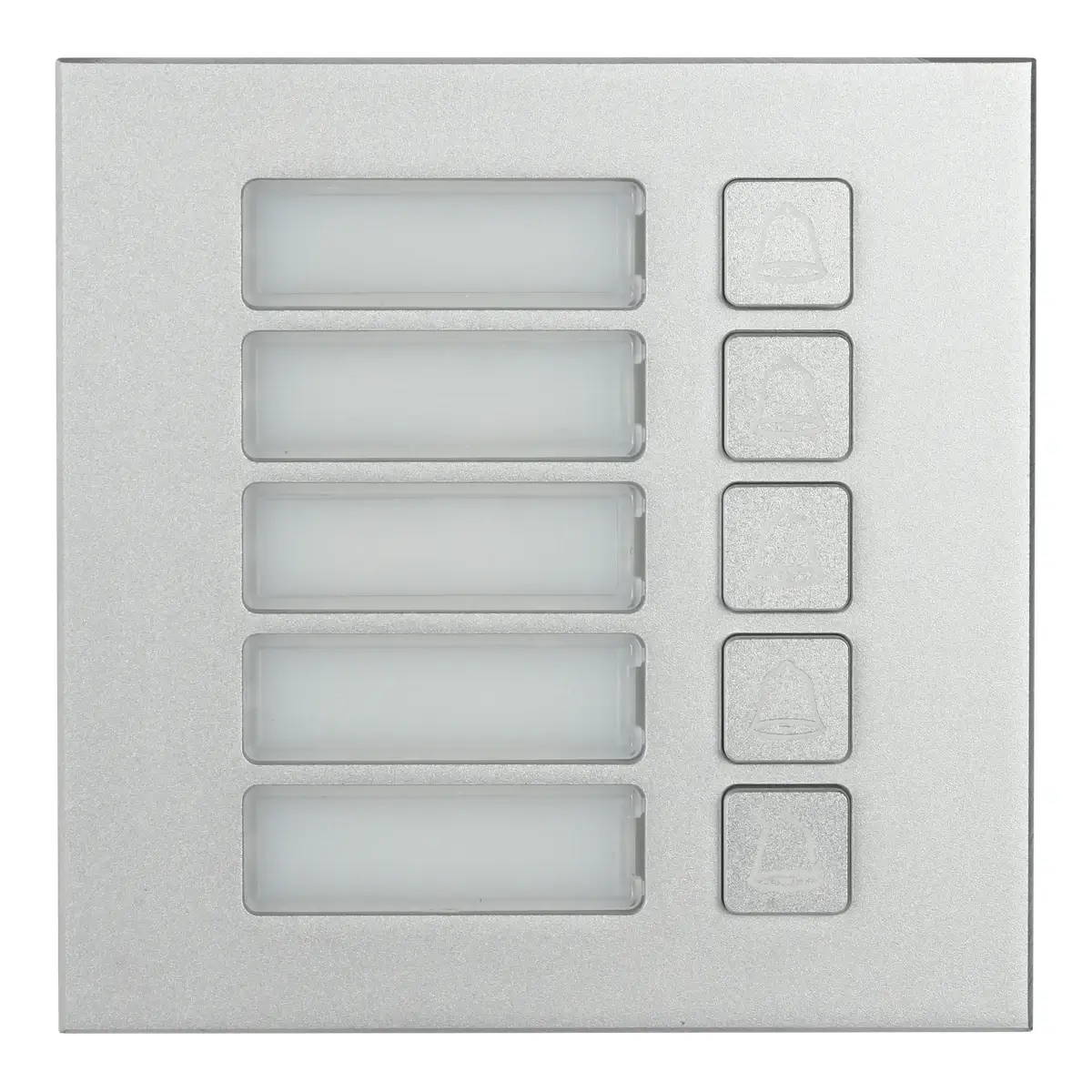

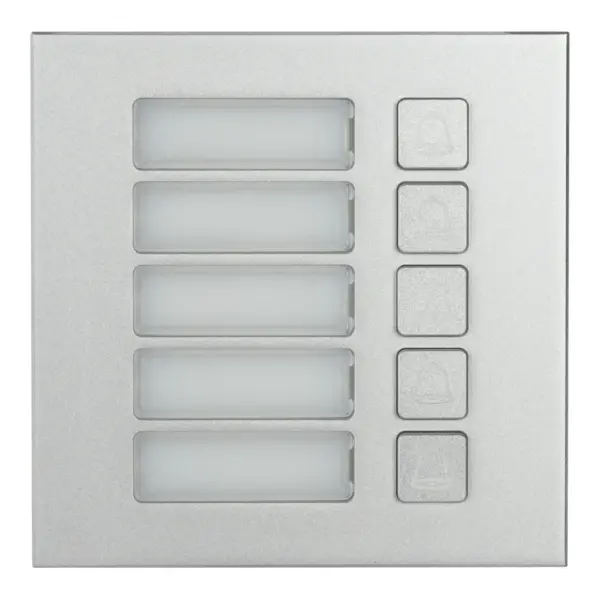

Call panel with five buttons
A call panel module with five buttons for the modular door station from the VTO4202 series. One full module wide, so five dwellings in the space of one block.
What you can count on
- Five call buttons: each with a window for the resident's name
- Power supply via the main module: 5 volts, supplied by the adjacent module, so no connection of its own
- Aluminium: silver finish, IK07 and IP65
What to look out for
This module belongs to the VTO4202 series, which works on IP with PoE or 2-wire. For the VTO4103 series there is a separate version with the same function. So first check which main module you have or are choosing.
The IP65 rating only applies once the housing has been sealed with silicone sealant during installation.
The details at a glance
| Function | Call button, 5 buttons |
| Series | VTO4202 (IP with PoE or 2-wire) |
| Colour | Silver |
| Dimensions | 100 x 100 mm (entire module) |
| Power supply | 5 VDC via the main module |
| Consumption | Maximum 0.5 W |
| Protection | IK07 and IP65 |
| Operating temperature | -30 to +60 degrees |
| Model code | VTO4202F-MB5 |
The full specification is in the Dahua datasheet.
Frequently asked questions
When do I choose this instead of individual modules?
From three homes onwards, this one is better than separate modules: five buttons in the space of one entire module, instead of three half modules side by side.
Does this module need its own power supply?

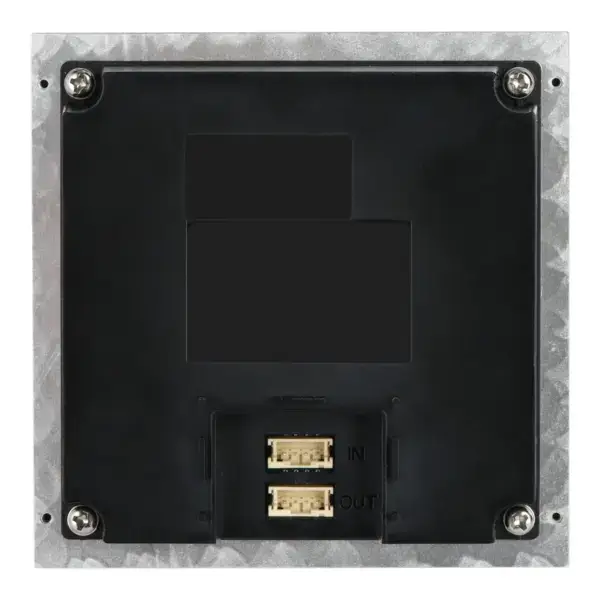

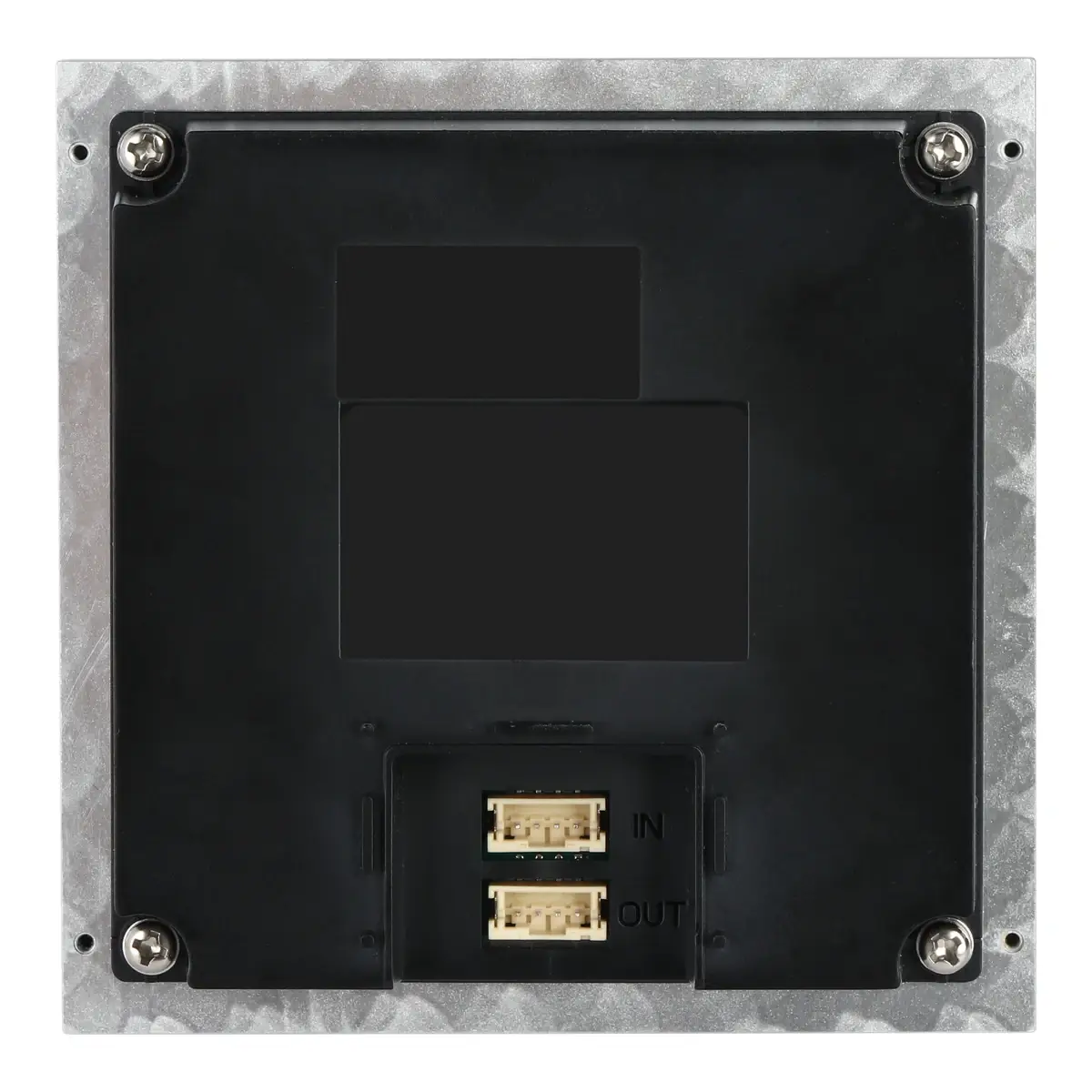

No. The modules receive 5 volts from the main module via the small cables between them. You only connect the main module.
Is an enclosure included?
No. You choose the housing based on the total number of modules in your setup, and you order it separately. Let us know how many modules you have and we will find the matching one.
