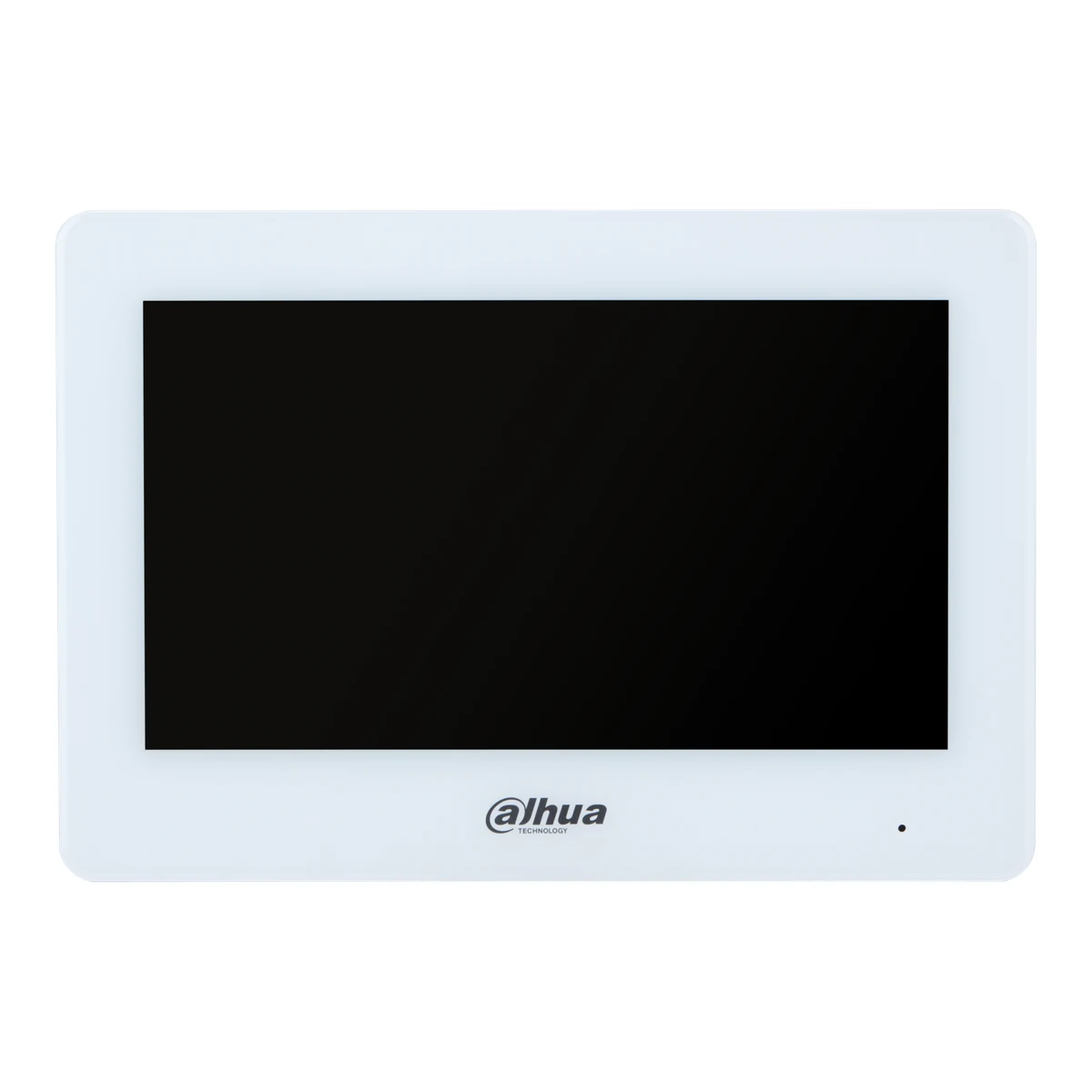

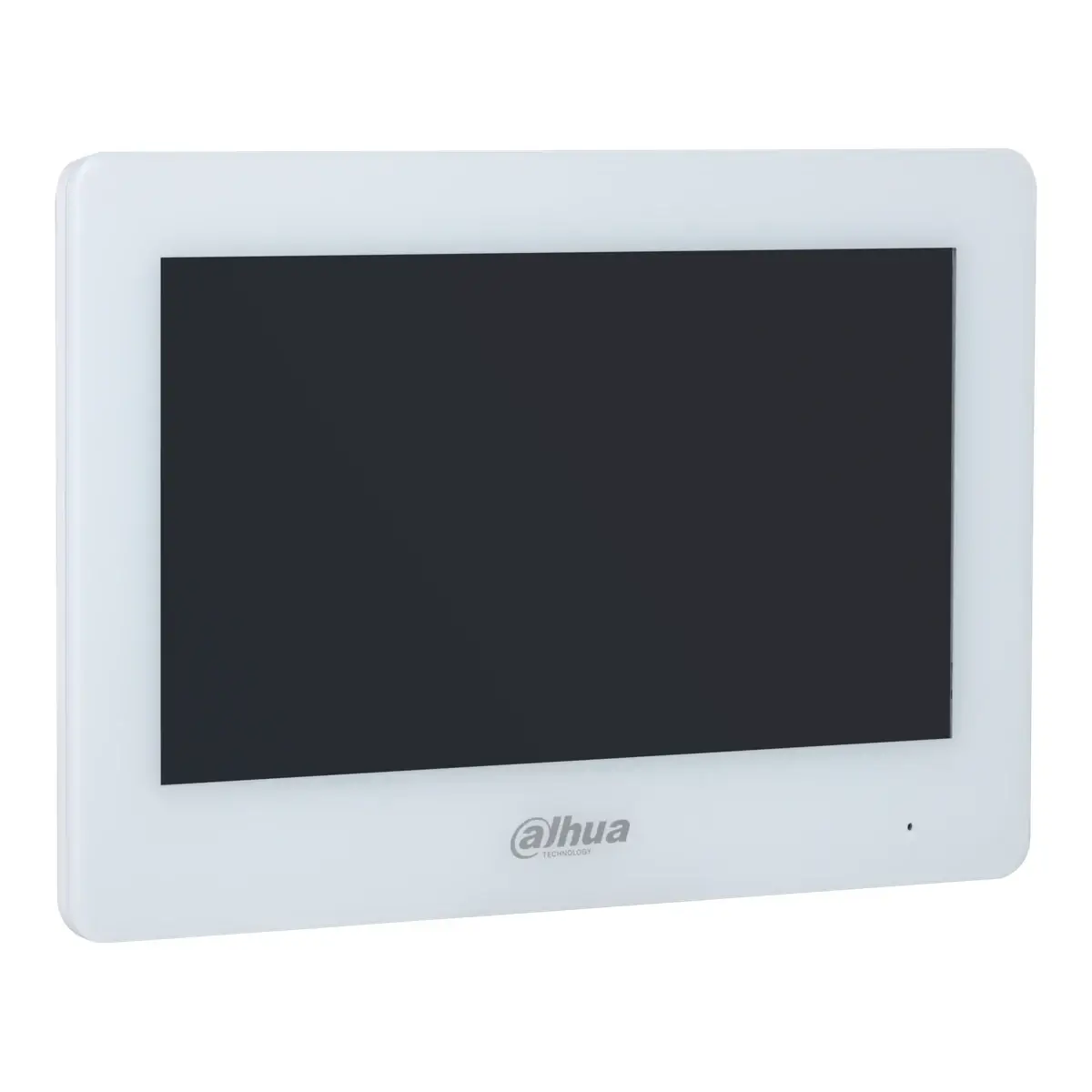

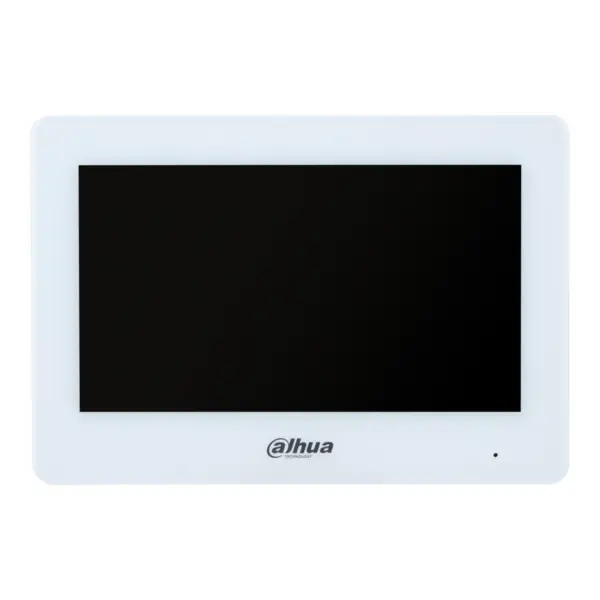

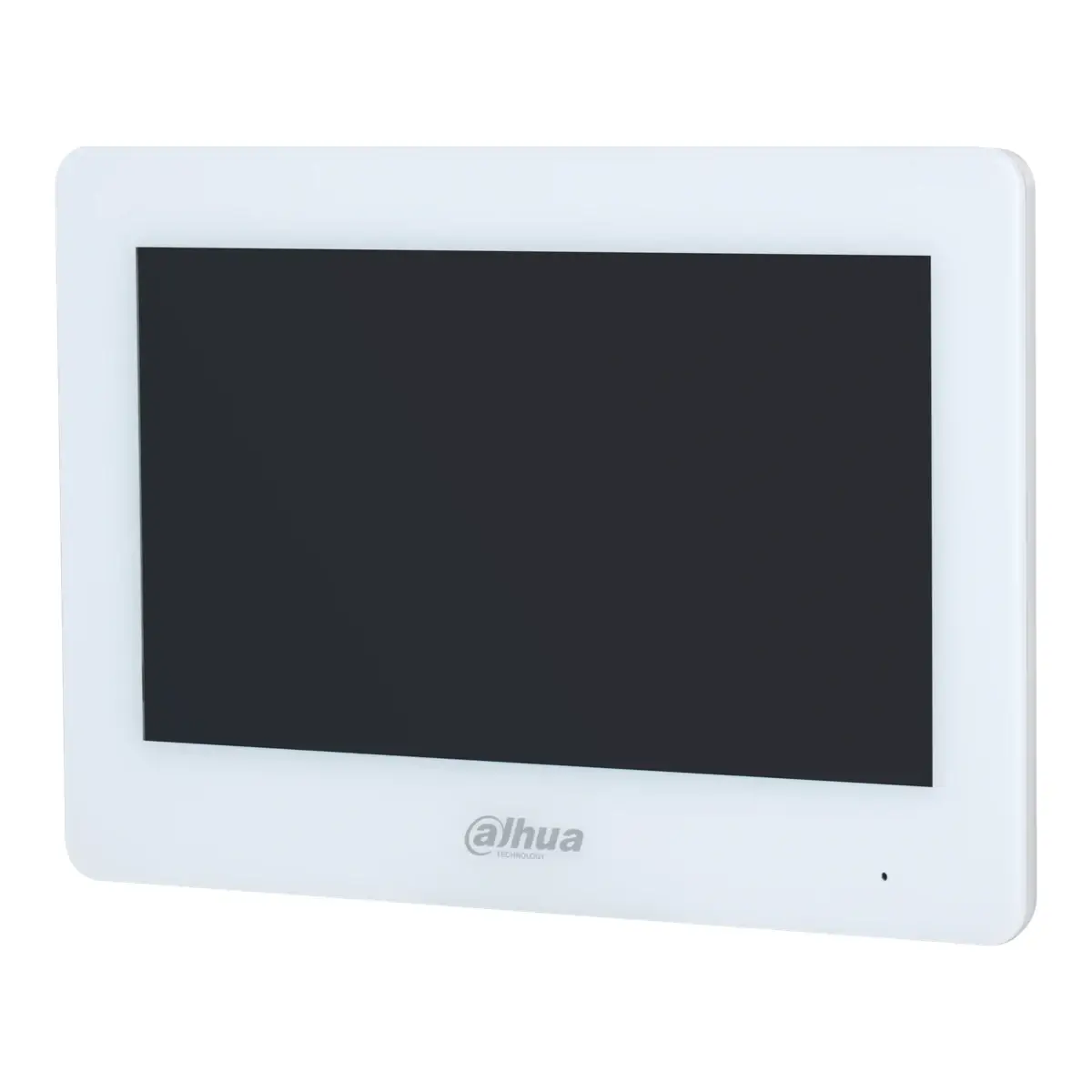

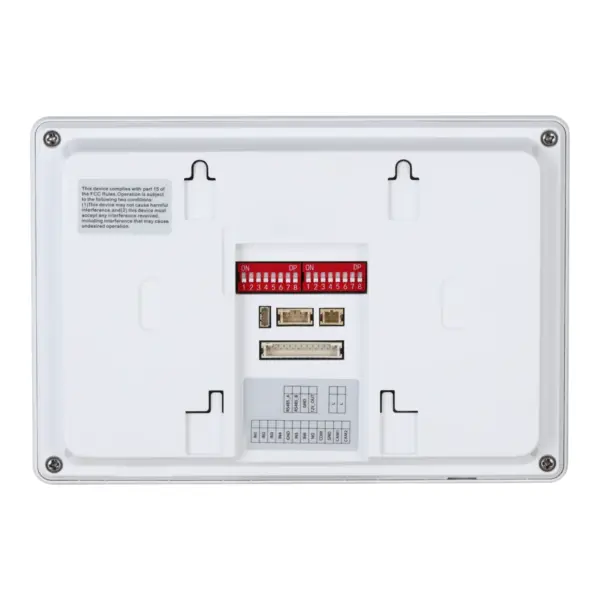

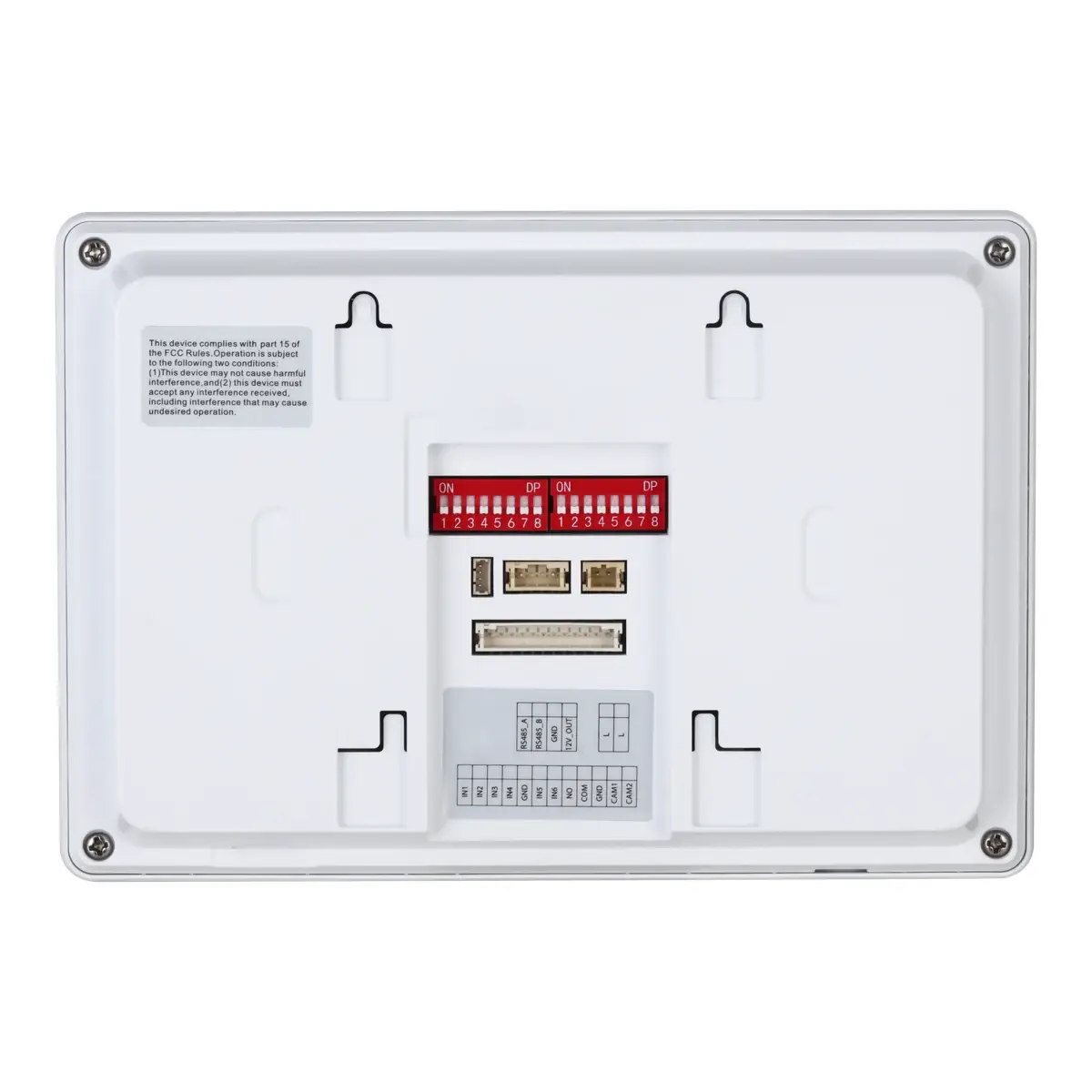

Indoor station for a 2-wire hybrid system
The 7 inch screen that belongs to the 2-wire hybrid range. The same station that is included in the KTX01 set, available here separately if you want to expand an installation with a second or third screen.
In addition to the 2-wire connection, the station has Wi-Fi, which allows the app on your phone to work.
What you can count on
- Six alarm inputs: for door contacts, detectors or a panic button, plus one output
- Wi-Fi: for the connection to the internet and the app
- Memory card up to 64 GB: for recordings and messages left behind
- RS485: for connecting to other equipment
What to look out for
This station belongs to the 2-wire hybrid line and works with the VTNC controller, not with the 2-wire IP switch. The two systems are not interchangeable.
Recording images requires a memory card. It is not included.
The details at a glance
| Screen | 7 inch, 1024 x 600 |
| System | 2-wire hybrid |
| Wi-Fi | Yes |
| Alarm inputs | 6 |
| Alarm output | 1 |
| Memory | TF card up to 64 GB |
| Model code | VTH5123H-W-S2 |
The full specification is in the Dahua datasheet.
Frequently asked questions
Does this station suit my system?
It belongs to the 2-wire hybrid line, with the VTNC controller. If you have a 2-wire IP system with a VTNS switch, this station does not fit it. Tell us what is installed and we will check.
Can I use it as a second screen?
Yes, it is suitable for that. It is the same station as in the KTX01 set, so you can expand that set with it exactly.
What do I use the alarm inputs for?
For wired contacts: a door or window contact, a motion detector or a panic button. The screen shows the alert and can forward it to the app.
Does the app also work when I am not at home?
Yes, provided the station is connected to the internet. You then receive a notification when someone rings the bell, you can see who is at the door and you can open it remotely.
