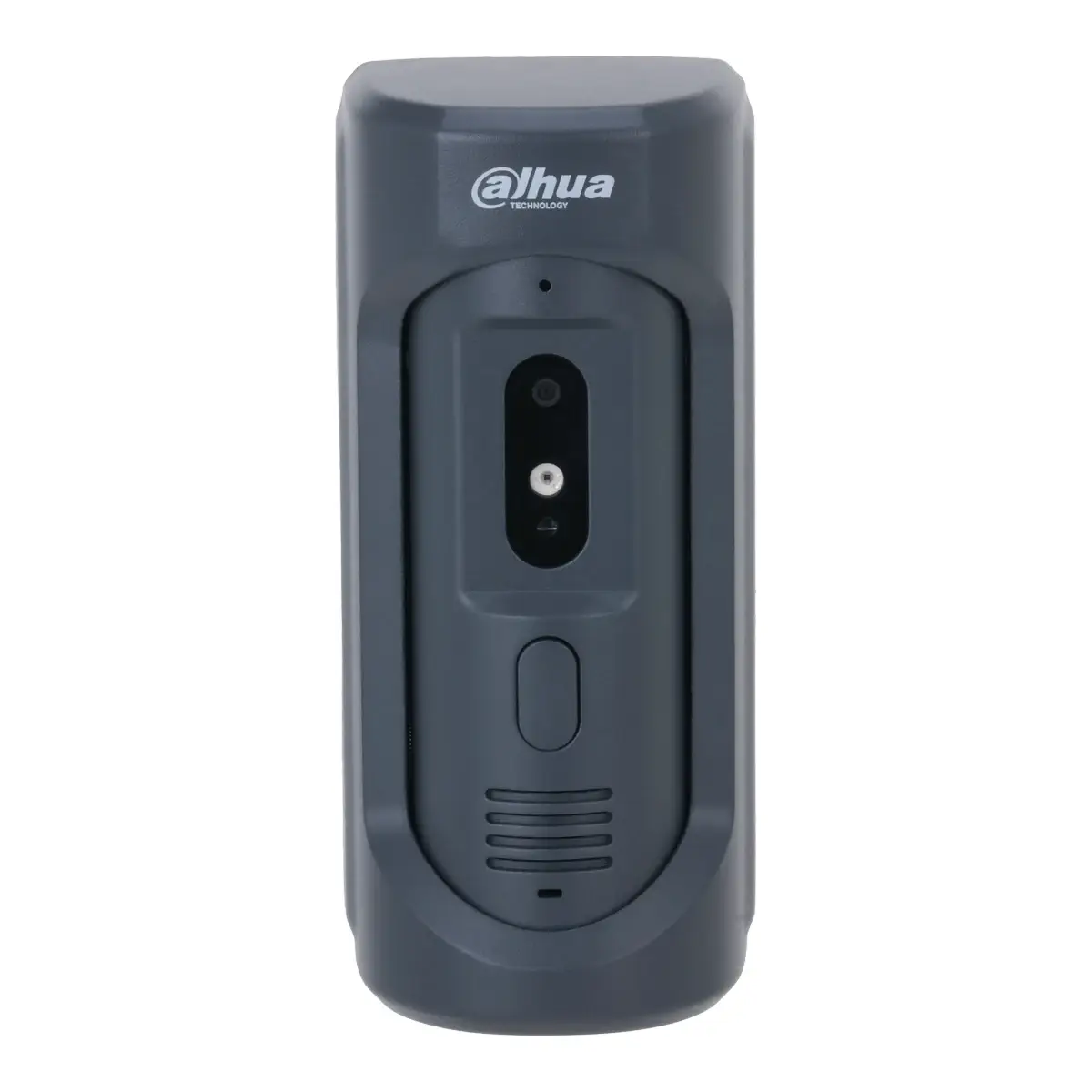

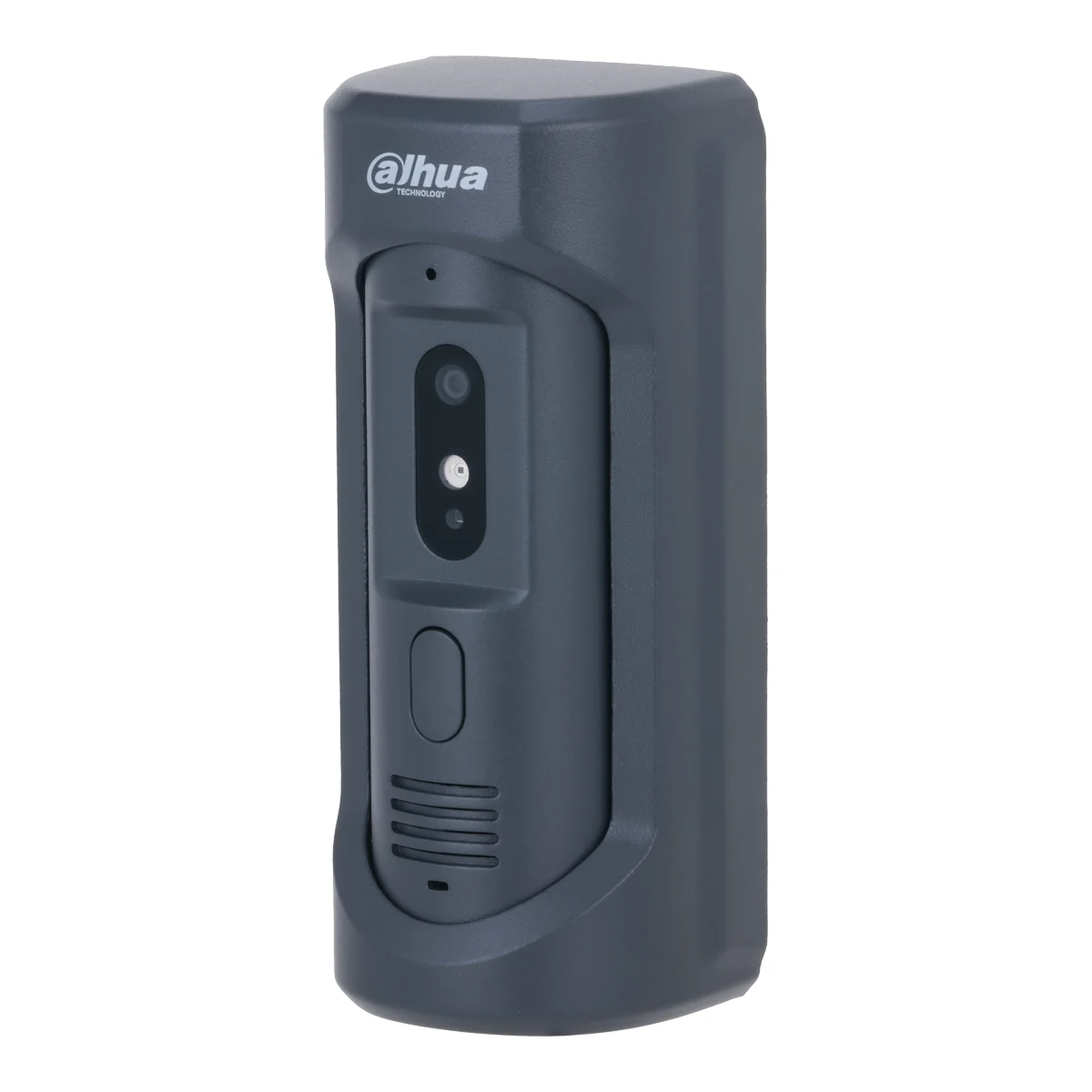

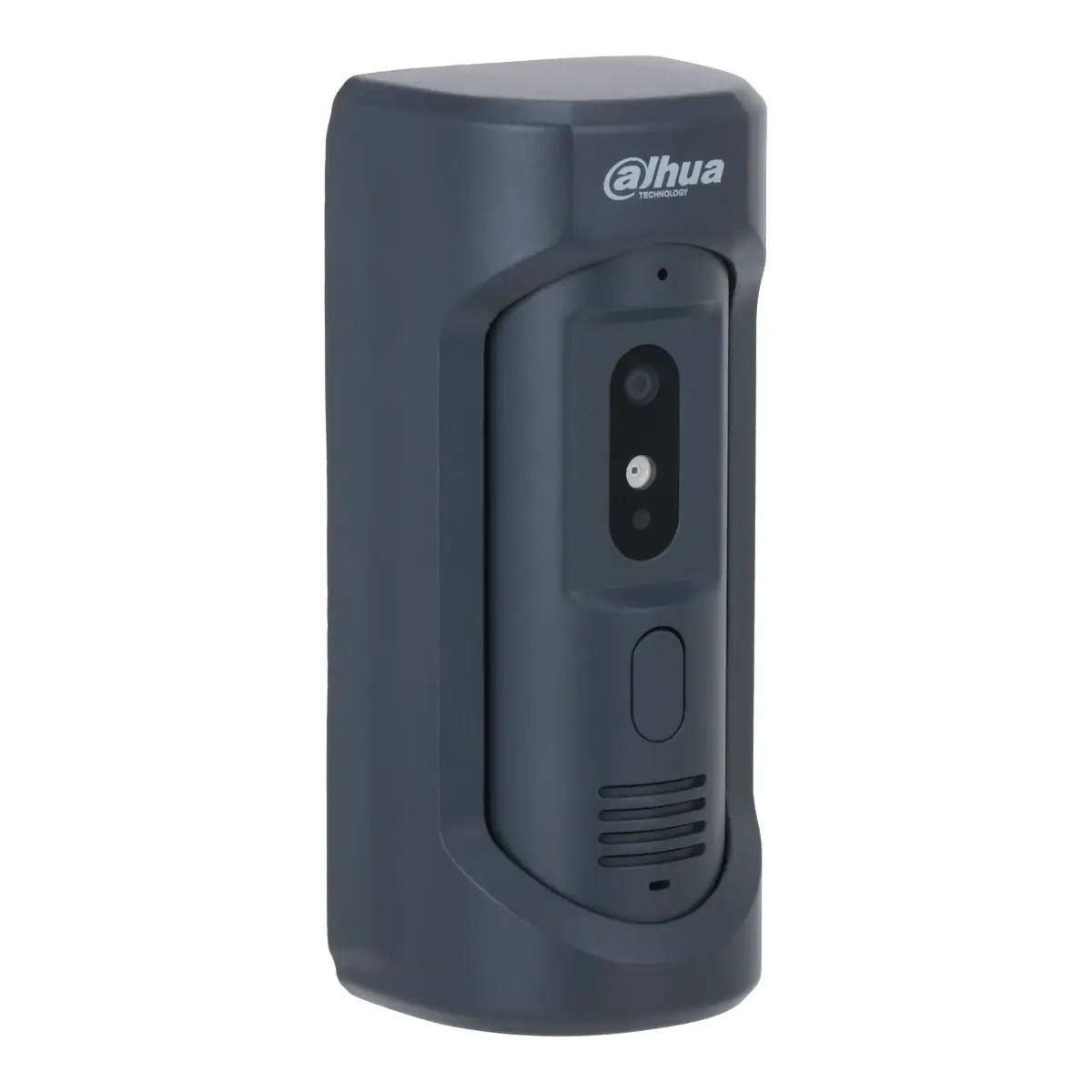

Dahua VTO2101E-P-S2 Video Intercom door station IP65/IK10
Video Intercom outdoor station IP65/IK10 from Dahua. Powered via 12v / PoE 802.3af, dimensions 163mm x 73mm x 54.5mm.
Features
What you can count on
- Full HD 2MP camera with a 100 degree field of view
- PoE compatible
- Aluminium housing

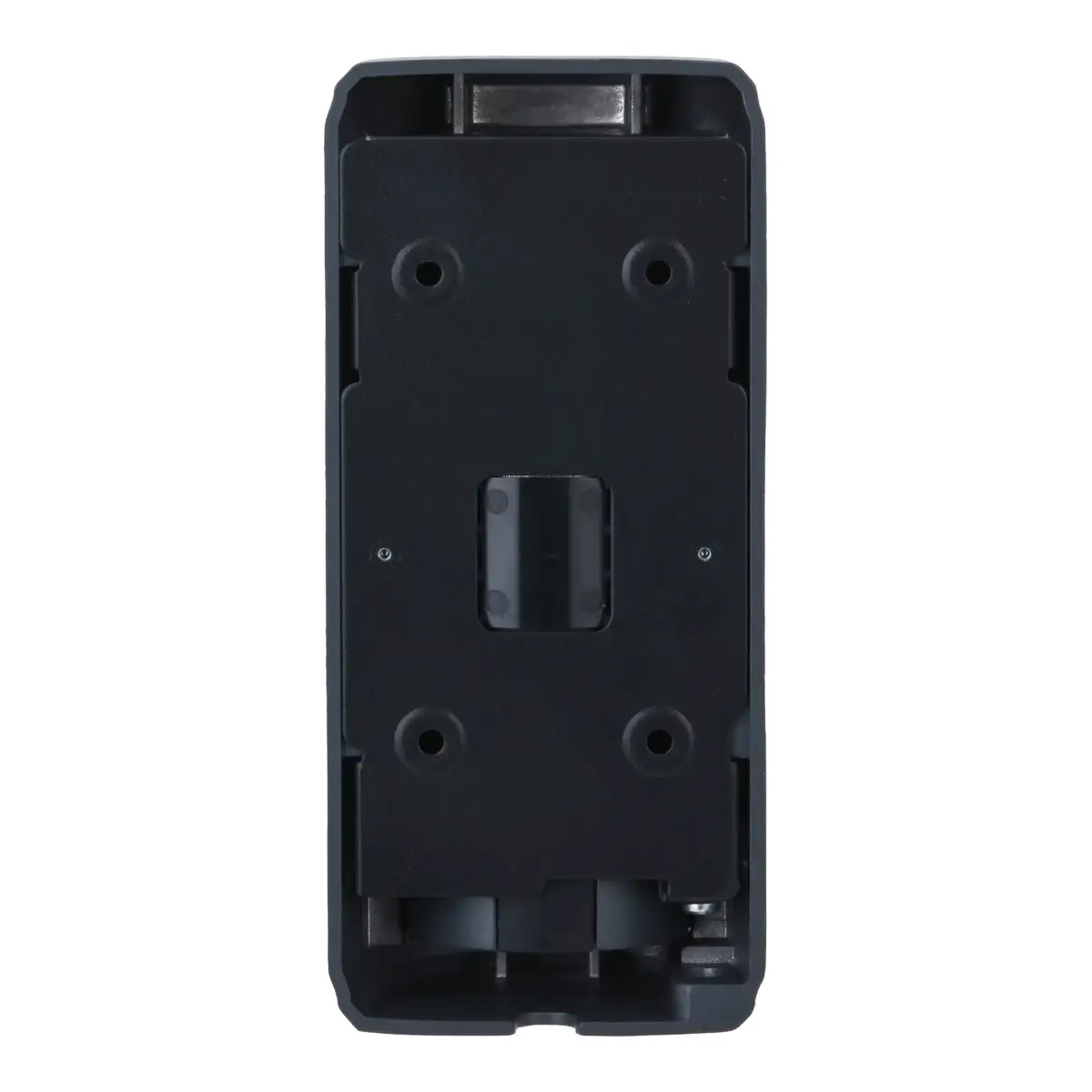

- Suitable for surface mounting
- IP65 and IK10 housing
- Suitable for use without an indoor station
Specifications
The details at a glance
| Sensor | 1/2.8″ 2-MP CMOS HD Camera |
| Number of pixels | 1920 x 1080 |
| Horizontal field of view | 100 degrees |
| Focal length | 2.8mm |
| Video compression | H.264; H.265 |
| Frames per second | Main stream: 720p, WVGA, D1, and CIF;, Sub stream: 1080p, WVGA, D1, QVGA, and CIF |
| Compression | G.711a; G.711u; PCM |
| Input | omnidirectional microphone |
| Output | Built-in speaker |
| Noise reduction | Noise suppression and echo cancellation |
| Call button | 1 mechanical button |
| Door status monitoring | 1 input |
| Release button | 1 input to release the door by means of a button |
| Door relay | 1x Maximum switching capacity: 24v 1A |
| Model code | VTO2101E-P-S2 |
The full specification is in the Dahua datasheet.
Good to know
VTO SIP server capacity
| Application |
Modular VTO PoE / 2-Wire |
Single VTO PoE / 2-Wire | WiFi VTO |
| VTO models |
|
|
|
| Max Number of VTO / VTH |
| 20 VTO + 10 VTH | 4 VTO + 3 VTH |
| VTH master-extension configuration | 1 Master + 4 extension | 1 master + 9 extensions | 1 master + 2 extensions |
| Simultaneous calls | 20 | 2 | 1 |
Questions
Frequently asked questions
Can this be installed outdoors?
Yes, the housing is IP65 and is therefore suitable for outdoor use. Make sure the cable enters through the cable gland, so that no moisture reaches the connection.
Does this fit my model?
The models this part fits are listed in the Dahua datasheet. If you are unsure, call or email us with the model you have and we will look it up.
